Build CSV to Graph Generator App with ToolJet and Python Libraries

In this tutorial, we’ll create a powerful CSV to Graph Generator app using ToolJet. This app enables users to upload a CSV file and generate various types of graphs, including line, scatter, bar, histogram, and box plots. Since ToolJet supports Python (and JavaScript) code out of the box, we’ll incorporate Python code and the matplotlib library to handle the graph generation. Additionally, we’ll use ToolJet’s customizable pre-built components to design an intuitive user interface in minutes.

Here’s a quick preview of the complete application:

Checkout this tutorial to learn how to develop a QR code generator using ToolJet.

Prerequisites:

• ToolJet (https://github.com/ToolJet/ToolJet) : An open-source , low-code business application builder. Sign up for a free ToolJet cloud account or run ToolJet on your local machine using Docker.

• Basic knowledge of Python.

Begin by creating an application named CSV To Graph Generator.

Step 1: Designing the User Interface

Let’s use ToolJet’s visual app-builder to quickly design the UI.

Designing the Header

Start by dragging and dropping a Text component onto the canvas for the header. Rename this component to headerText and set its text to “CSV TO GRAPH GENERATOR.” Customize its styling properties to have a text size of 25, font weight of bolder, text color of #375fcfff, and text alignment to the right. This will serve as the header text of your app.

Next, add an Icon component, naming it logo. Set the icon to IconChartAreaFilled and the icon color to #375fcfff. Position it appropriately on the canvas to complement the header text.

Creating the CSV Upload Section

To organize the app’s layout, drag a Container component onto the canvas. Style this container with a border radius of 7, background color of #fff, and a box shadow of 2px 2px 1px 1px #aec0f5ff. This container will hold all the input fields and output preview.

Inside the container, add a File Picker component and rename it to fileUploader. Set its Accept file types property to {{“csv/*”}} to accept CSV files. Enable the Parse content toggle, and select File type as CSV. This component will allow users to upload their CSV files.

Next, add a Dropdown component next to the File Picker, rename it to graphSelectionDropdown. Set the component’s Option values to {{[“line”, “scatter”, “bar”, “histogram”, “box”]}} and Option values to {{[“Line”, “Scatter”, “Bar”, “Histogram”, “Box”]}}.

Below the dropdown, add a Button component and rename it to generateGraphButton. Set its text to “Generate Graph”.

Double curly braces in ToolJet are used to pass custom code and refer or access values.

Creating the Image Preview

To display the generated graph, add an Image component below the File Picker and Button.

Step 2: Using Python Libraries through Queries

ToolJet’s query builder offers a convenient way to use custom code or connect with external data sources, services, and libraries. We will use it to create a Python query that uses the CSV data and interacts with the matplotlib library to generate graphs.

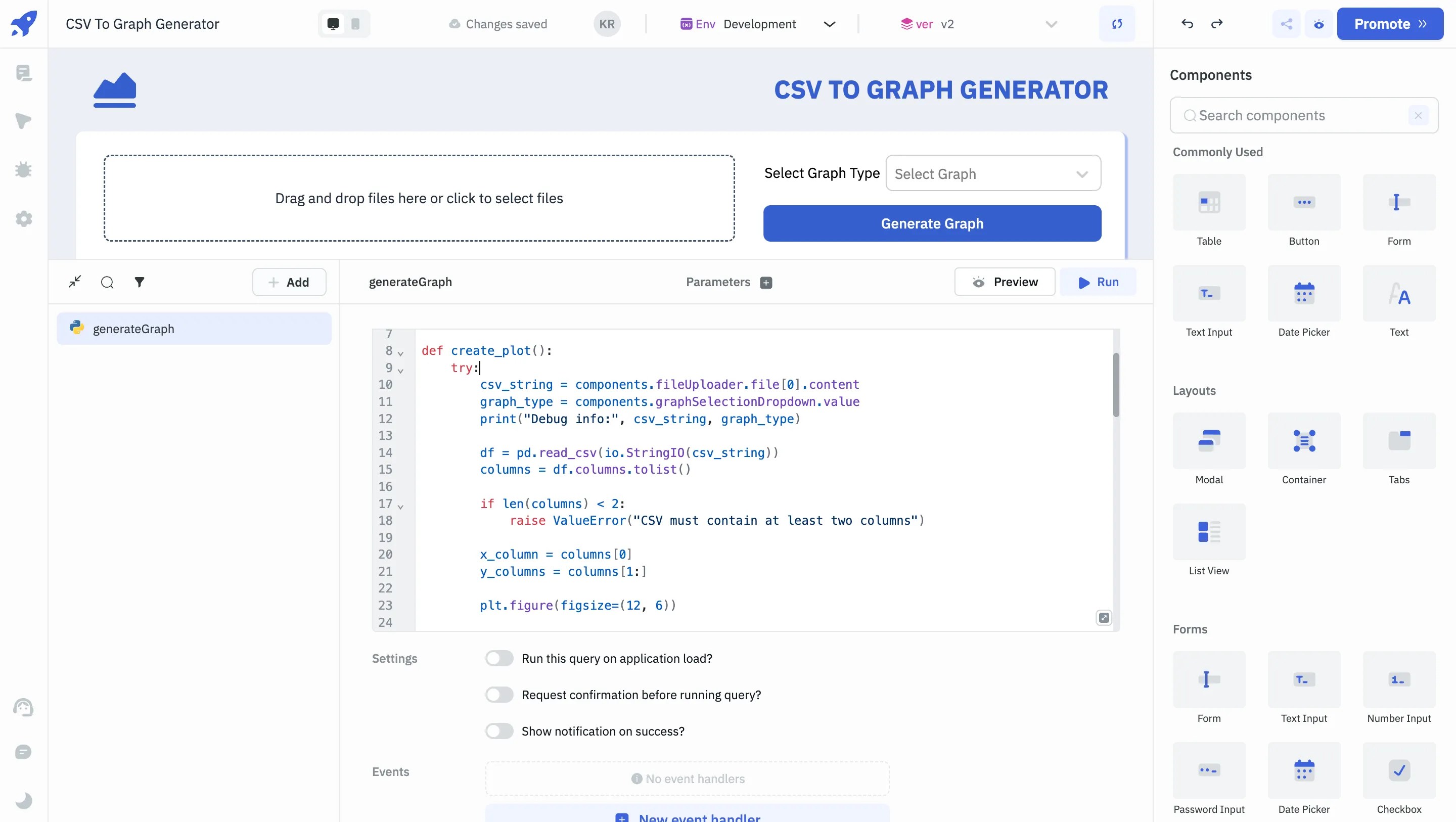

Expand the query panel at the bottom, create a new query named generateGraph, and choose Python as the data source. Enter the below code in your Python query:

import matplotlib.pyplot as plt
import pandas as pd
import numpy as np
from io import BytesIO
import base64
import io

def create_plot():
    try:
        csv_string = components.fileUploader.file[0].content
        graph_type = components.graphSelectionDropdown.value
        print("Debug info:", csv_string, graph_type)

        df = pd.read_csv(io.StringIO(csv_string))
        columns = df.columns.tolist()

        if len(columns) < 2:
            raise ValueError("CSV must contain at least two columns")

        x_column = columns[0]
        y_columns = columns[1:]

        plt.figure(figsize=(12, 6))

        if graph_type == 'line':
            for col in y_columns:
                plt.plot(df[x_column], df[col], label=col)
            plt.title(f'Line Plot: {x_column} vs {", ".join(y_columns)}')
            plt.legend()
            plt.xticks(rotation=45, ha='right')
        elif graph_type == 'scatter':
            if len(y_columns) >= 2:
                plt.scatter(df[y_columns[0]], df[y_columns[1]])
                plt.title(f'Scatter Plot: {y_columns[0]} vs {y_columns[1]}')
                plt.xlabel(y_columns[0])
                plt.ylabel(y_columns[1])
            else:
                plt.scatter(df[x_column], df[y_columns[0]])
                plt.title(f'Scatter Plot: {x_column} vs {y_columns[0]}')
                plt.xlabel(x_column)
                plt.ylabel(y_columns[0])
        elif graph_type == 'bar':
            x = range(len(df[x_column]))
            width = 0.8 / len(y_columns)
            for i, col in enumerate(y_columns):
                plt.bar([xi + i*width for xi in x], df[col], width, label=col)
            plt.xlabel(x_column)
            plt.ylabel('Value')
            plt.title(f'Bar Plot: {", ".join(y_columns)}')
            plt.xticks([xi + width*(len(y_columns)-1)/2 for xi in x], df[x_column], rotation=45, ha='right')
            plt.legend()
        elif graph_type == 'histogram':
            for col in y_columns:
                plt.hist(df[col], bins=10, alpha=0.5, label=col)
            plt.title(f'Histogram: {", ".join(y_columns)}')
            plt.xlabel('Value')
            plt.ylabel('Frequency')
            plt.legend()
        elif graph_type == 'box':
            plt.boxplot([df[col] for col in y_columns])
            plt.title(f'Box Plot: {", ".join(y_columns)}')
            plt.xticks(range(1, len(y_columns) + 1), y_columns, rotation=45, ha='right')
            plt.ylabel('Value')
        else:
            raise ValueError(f"Invalid graph type: {graph_type}. Choose 'line', 'scatter', 'bar', 'histogram', or 'box'.")

        plt.grid(True)
        plt.tight_layout()

        buffer = BytesIO()
        plt.savefig(buffer, format='png')
        buffer.seek(0)

        img_str = base64.b64encode(buffer.getvalue()).decode('utf-8')

        plt.close()

        return img_str
    except Exception as e:
        print(f"Error in create_plot: {str(e)}")
        return None

create_plot()

Once this is configured, you can select a CSV file in the File Picker, select the graph type, and click on the Run button in the query panel. You can see the output generated by the query under preview.

Step 3: Connecting the UI Components with the Query

Time to bind the query to the components and complete the app-building process.

Configuring the Image Preview

In the Data property of the Image component, enter the following code to bind the query’s result:

{{‘data:image;base64,’ + queries.generateGraph.data}}

For the Loading state property of the Image component, click on the fx button to enter custom code and enter the below code:

{{queries.generateGraph.isLoading}}

Triggering the Query Based on Button Click

Bind the query to the generateGraphButton by adding an on Click event that triggers the generateGraph query. This setup ensures that the script runs and generates the graph when the button is clicked.

After this setup, every time you upload a CSV file, select a graph type, and click on the generateGraph button, the graph will be created and a preview will be visible in the Image component.

Conclusion

By following these steps, we’ve successfully built a dynamic and user-friendly CSV to Graph Generator app with ToolJet. We utilized ToolJet’s visual app builder to craft an elegant and intuitive UI, used the query builder to integrate a Python library for graph generation, and demonstrated how to customize ToolJet applications to deliver a smooth user experience.

To learn and explore more about ToolJet, checkout the ToolJet docs or connect with us and post your queries on our Slack channel.
